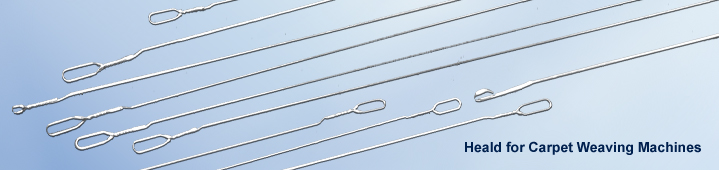

| Heald for Carpet Weaving Machines
| |
| Healds Specification |
| Wire Size (g/mm) |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
| 0.92 |
0.81 |
0.71 |
0.60 |
0.56 |
0.50 |
0.60 |
| Length |
520, 620, 640, 680, 690, 720, 740, 780, 800, 830 or required |
|
| Loop Specification |
| Oblong |
 |
Jaquard |
 |
| Open J |
 |
Round |
 |
| Lancia Type |
 |
Folding Type |
 |
| Crimp Type |
 |
|
|
|
| Eye No. |
Sketch |
Dimension |
| 355R |
 |
4.2 x 2.3 |
| 380R |
 |
5.6 x 2.7 |
| 385R |
 |
6.2 x 3.4 |
| 1080R |
 |
6.6 x 3.9 |
| 390R |
 |
8.0 x 4.2 |
| 420R |
 |
9.0 x 4.8 |
| 450R |
 |
10.3 x 6.3 |
|
| |
| Wire Healds for Plastic Woven Sacks Industries |
| |
| Eye No. |
Sketch |
Dimension |
| 1080R |
 |
6.6 x 3.9 |
| 390R |
 |
8.0 x 4.2 |
| 420R |
 |
9.0 x 4.8 |
| 450R |
 |
10.0 x 6.3 |
| 480R |
 |
13.5 x 7.5 |
| 8040R |
 |
8.0 x 4.0 |
| 65/0 |
 |
Ø 6.5 |
|
|
|
